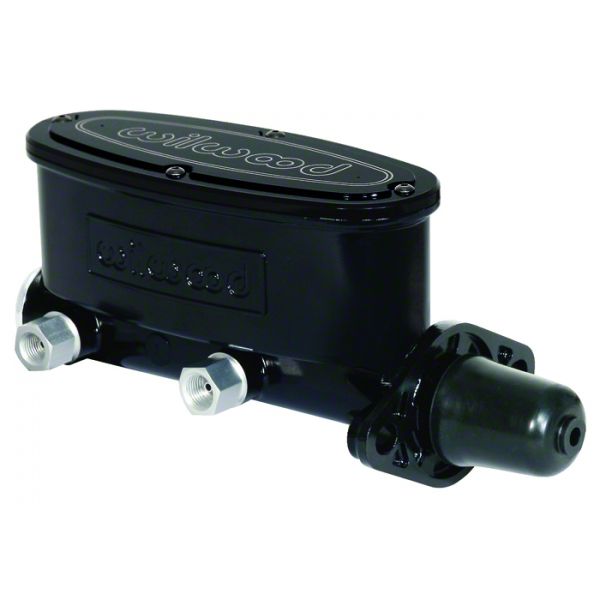

1962-1979 Nova Wilwood Aluminum Tandem Master Cylinder, 1.0 Bore
Item EK-85-382662-1
Nova/Chevy II Sales Techs:
Connect Now
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price
$277.14
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Q&A
Features
- Designed For Manual and Power-Assisted Applications
- Black Electrocoat Finish
- For Mount Flanges From 3.22" to 3.40"
- Fluid Outlets Both Sides of 1.00" Bore
- Stroke Set at 1.10:, Volume Ratio of 2:1
- Only 3 Lbs - 75% Lighter Than OE Cast Iron
- 8.76" OA Length; Flange to End 8.15"
- Eckler OEM Number: 260-8555-BK
Description
Wilwood’s Tandem Aluminum Master Cylinder is available in 2 bore sizes 1.00” and 1-1/8”; and 3 finishes, plain, ball burnished and black e-coat. 7/8” bore master cylinders are designed primarily for manual applications and include a pushrod. The 1” bore can be used in manual and power assisted applications and does not come with a pushrod. The 1-1/8” bore is designed for use primarily with power brake applications, either from vacuum assist or hydraulic assist systems. They’re designed for mount flanges from 3.22” to 3.40”, common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-
