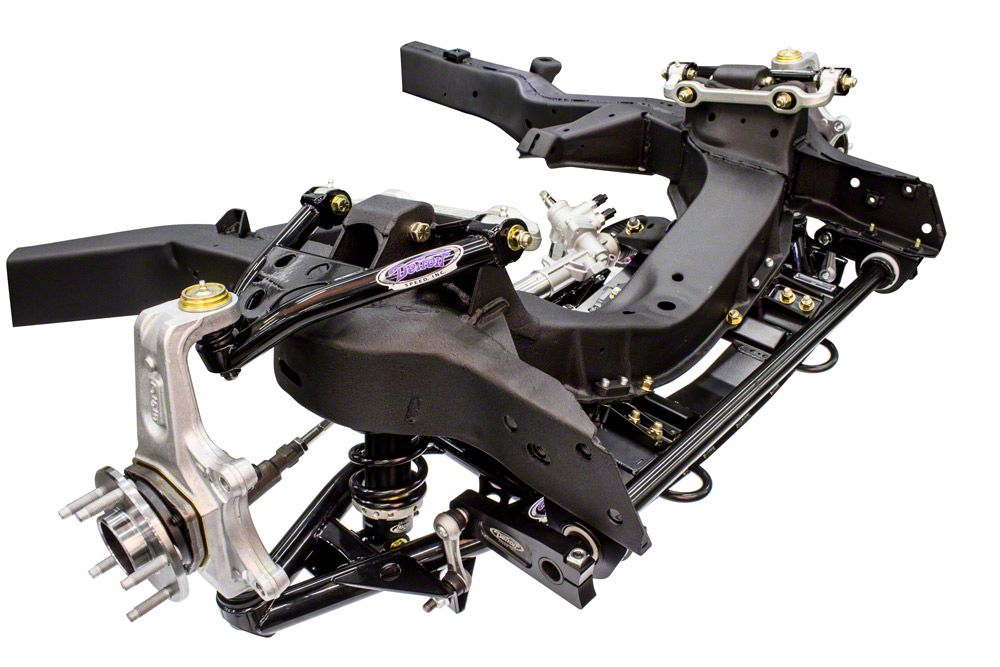

Detroit Speed SPEEDRAY Front Suspension Kit with Double Adjustable Shocks; Fabricated Coil-Over Mounts (63-82 Small Block V8/LS Corvette C2 & C3)Find parts that fit my vehicle

The new Detroit Speed C2/C3 SPEEDRAY™ front suspension has no compromises and exclusive Detroit Speed suspension geometry for superior handling and ride quality. It is available as a 100% bolt-on system or with a small amount of fabrication for a competition coilover option that allows faster spring changes. The system features 'Detroit Tuned' quick ratio power rack and pinion steering along with forged in the USA Detroit Speed aluminum uprights. The bolt-on powder coated cradle assembly improves suspension geometry, provides rigid mounting for the rack and pinion, and includes integrated tie down eyelets. DSE/JRi 'Detroit Tuned' Coilover shocks/springs allow for spring rate tuning and ride height adjustment. It also includes a splined sway bar with aluminum arms, composite bushings, powder coated tubular upper and lower control arms with Delrin™ bushings, forged offset upper control arm mounting brackets with caster tuner bushings to optimize suspension geometry and provide clearance for Gen V LT4 engines. The kit also includes Torrington bearings and a spanner tool for easy spring height adjustments. The body and engine do not need to be removed for installation of the SPEEDRAY™ front suspension.Double Adjustable Shock:This is the most race winning shock JRi has in its stable. With its two independent adjustments and the enormous range of adjustment it can be set to the exacting demands of the driver and performance levels required while providing excellent ride quality on the street.Spring Rate: 550lbs/inSpring Free Length: 8in

Features:

TIG welded tubular upper and lower control arms

Aluminum body coilover shocks with "Detroit Tuned" valving

Coilover springs

"Detroit Tuned" power rack and pinion steering

Integrated splined sway bar with composite bushings

Control arm cross shafts with caster tuner bushings

Forged aluminum Detroit Speed spindles

Fitment:

• 1963 Chevrolet Corvette
• 1964 Chevrolet Corvette
• 1965 Chevrolet Corvette
• 1966 Chevrolet Corvette
• 1967 Chevrolet Corvette
• 1968 Chevrolet Corvette
• 1969 Chevrolet Corvette
• 1970 Chevrolet Corvette
• 1971 Chevrolet Corvette
• 1972 Chevrolet Corvette
• 1973 Chevrolet Corvette
• 1974 Chevrolet Corvette
• 1975 Chevrolet Corvette
• 1976 Chevrolet Corvette
• 1977 Chevrolet Corvette
• 1978 Chevrolet Corvette
• 1979 Chevrolet Corvette
• 1980 Chevrolet Corvette
• 1981 Chevrolet Corvette
• 1982 Chevrolet Corvette
