Find Gauges & Gauge Pods for your Firebird

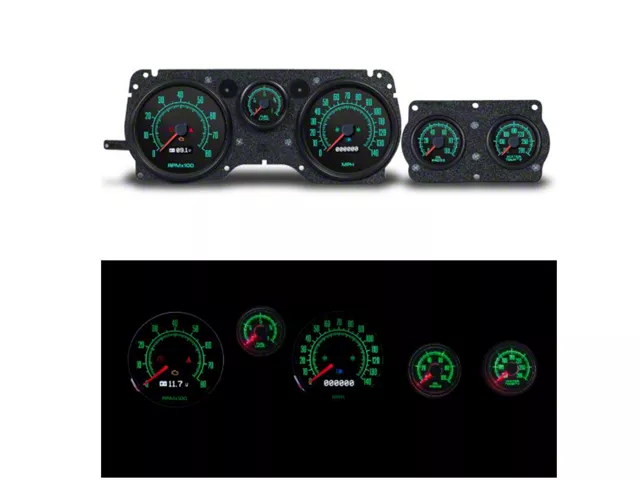

1970-1981 Firebird 69 Series Gauge Kit

Item EK-75-855403-1
1970-1981 Firebird 69 Series Gauge Kit
Verify parts fit and get product recommendations.
Firebird Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Call now 1-877-305-8966 Chat Now
$0.00
Want $10? Write one of the first 5 reviews
Our Price

$809.99

Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • Gen II (70-81) Firebird mounting bracket kit
      • Speedometer 4-3/8" 140 MPH with Phoenix features and one additional analog input
      • Tachometer 4-3/8" 8,000 RPM with Phoenix features and 2 additional inputs
      • 2-1/16" Fuel gauge 0-90 Ω (GM factory match)
      • 2-1/16" Voltmeter 10-16V
      • 2-1/16" Oil pressure 0-100 PSI
      • 2-1/16" Water temp 140-280 F
      • Back-clamps
      • Incandescent bulbs
      • 2 ea AMP connectors
      • Water temperature sender Hi Match
      • Oil pressure sender 240-33Ω 1/8-27 NPT
        Bushing kit 1/8-27 NPT to 1/4", 3/8", 1/2"

      Description

      NVU kits for 70-81 Pontiac Firebird update the look of your dash to match the theme of your ride Plus offer updated, modern internals and functions you expect in today's builds. All kits include NVU's exclusive laminate mounting system that installs in the factory mounting holes without cutting up your dash plate. Functional turn signals can be displayed in the factory panel with the included LEDs. We even added a separate LED to light up your wiper switch, just like original! Kits include Speedo, Tach, fuel (factory match 0-90 Ω) , water temp, oil pressure and internally displayed voltmeter (on OLED Screen). Bushings, brackets, temperature sender, pressure sender, AMP harnesses and programming buttons also included in the kit.


      Fitment:

      • 1970 Pontiac Firebird
      • 1971 Pontiac Firebird
      • 1972 Pontiac Firebird
      Details

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Firebird

      • Base - 70, 71, 72
      • Esprit - 70, 71, 72
      • Formula - 70, 71, 72
      • Trans Am - 70, 71
