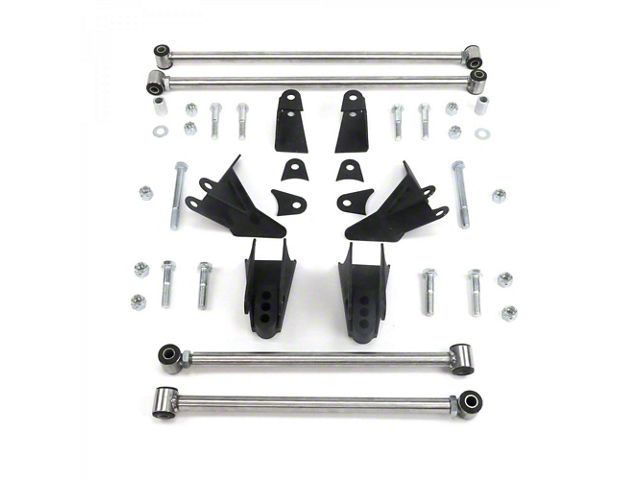

1973-1987 Chevy C10-GMC C15 Truck Rear Four-Link Suspension Kit

Item EK-61-888287-1
1973-1987 Chevy C10-GMC C15 Truck Rear Four-Link Suspension Kit
$0.00
Want $10? Write one of the first 5 reviews
Our Price

$849.99

to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • Heavy duty triangulated rear four-link
      • 28in (711mm) long main bar
      • 18in (457mm) long secondary bar
      • 25 mm bar with 4.1mm bar wall thickness
      • Includes heavy duty bushings
      • 3 position coilover brackets
      • 5mm bracket thickness
      • Hardware included
      • Fits 3in & 2 3/4in axles
      • Welding required
      • Manufacturer’s limited lifetime warranty
      • NOTE: Springs and shocks are not included in this kit
      • Special order- allow additional time

      Description

      Helix's Heavy Duty Universal Triangulated 4-Link Kit is strong enough to handle your horsepower and torque. With the same .156 wall tubing that is the standard in drag racing applications, Helix's 4-link kit will remain straight and perfectly aligned under even the most demanding applications. The adjustable rear 4-link features extra-long 28 inch main bars and 18 inch secondary bars to provide you with the maximum in suspension travel and adjustability. Brass sleeved bushings guarantee a lifetime of squeak-free operation. Completely MIG welded for maximum strength. All mounts are cut from 3/16” plate. Special infinitely adjustable CNC machined threaded rod ends are thicker than usual and thread over 2.5 inches into the 4-link tubes for both strength and adjustability. Fully plate
