1964 Impala Side Molding Installation

Installing new Impala side moldings is a snap! Make your Impala look like new with this new molding kit set and complete clip kit. Our kits include many that are no longer reproduced, so look no further than Chevy Classics for new, innovative ways of making your Impala stand out.

Parts List

  • 40-161226-1 - 1964 Chevy Impala 2-Door Side Molding Set Complete to replace worn or missing original
  • 40-138287-1 - 1964 Impala Rear Quarter Panel Cover Horseshoe Moldings
  • 40-141427-1 - 1964 Impala 2-Door Complete Side Molding Clip Set
  • 40-141428-1 - 1964 Impala Fender Molding Clip Set
  • 40-141429-1 - 1964 Impala Door Molding Clip Set
  • 40-141430-1 - 1964 Impala Quarter Molding Clip Set

Tools Needed

  • Phillips Screwdriver
  • 3/8" Wrench

Time Frame:

  • 2 Hours

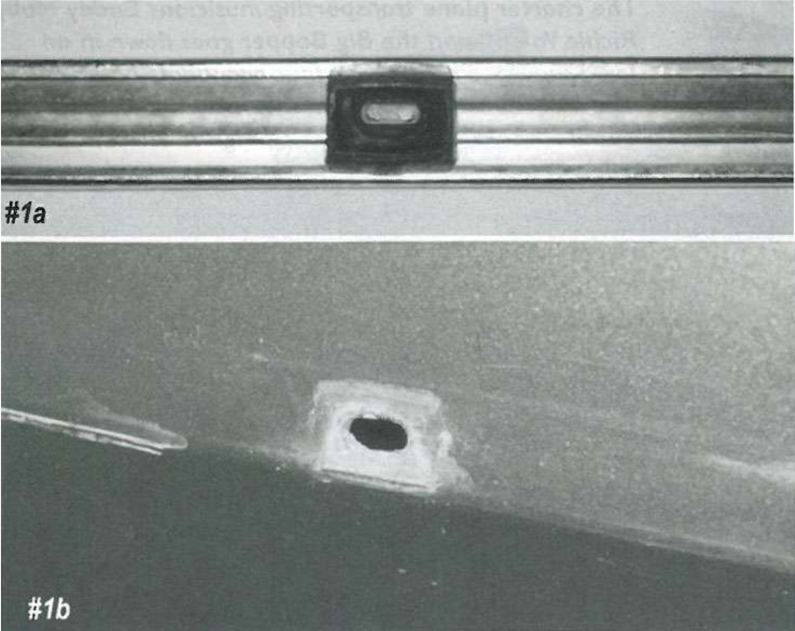

Image 1: We're going to start on the rear quarter. The upper quarter molding was held to the body with a...

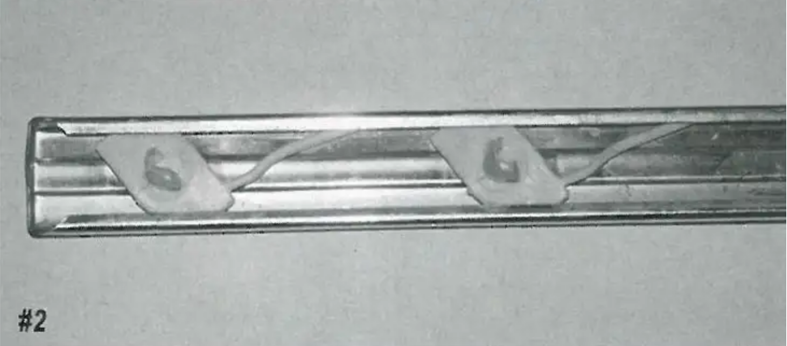

Image 2: We have located a clip to use in place of the OE style clip. This will hold the molding in its location...

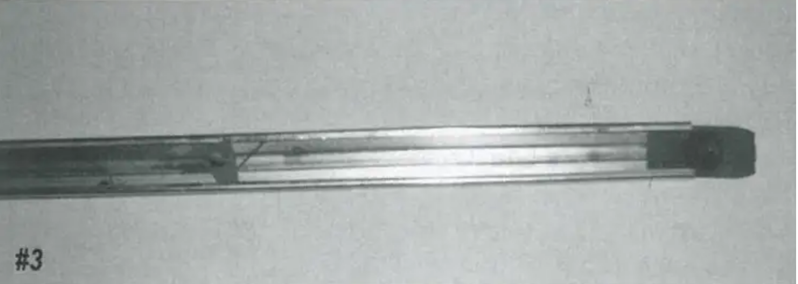

Image 3: At the rear of the upper and lower quarter moldings, there is a steel coupler clip that connects the rear C-molding to the upper and lower moldings...

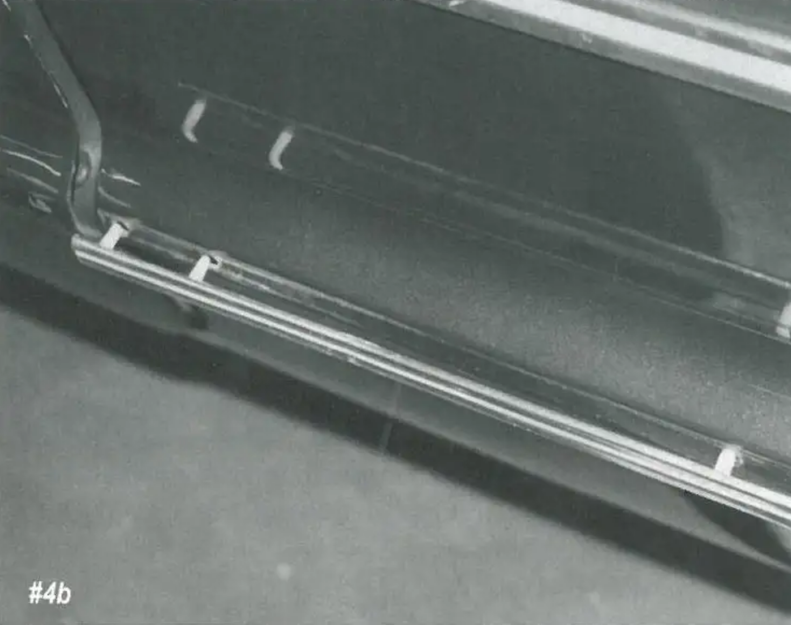

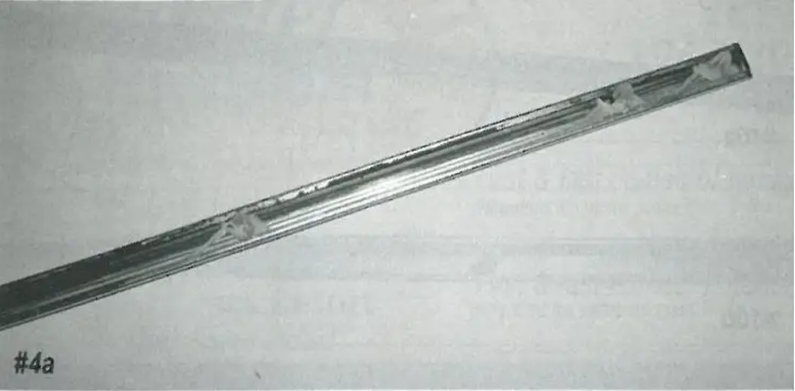

Image 4: The lower molding is also held in with ten clips. They are the same as the upper clips, but smaller, for the thinner molding...

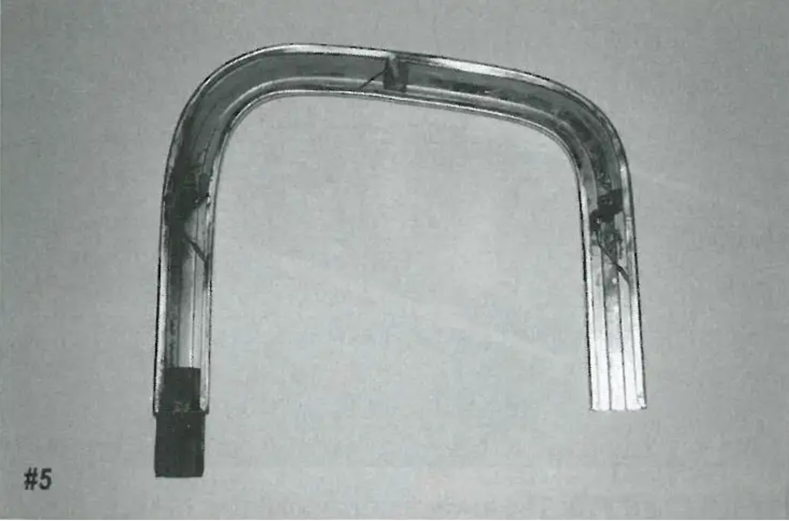

Image 5: The rear C-molding is held to the body with the upper and lower couplers on the ends of the molding along with two steel clips and one steel clip with a stud and nut...

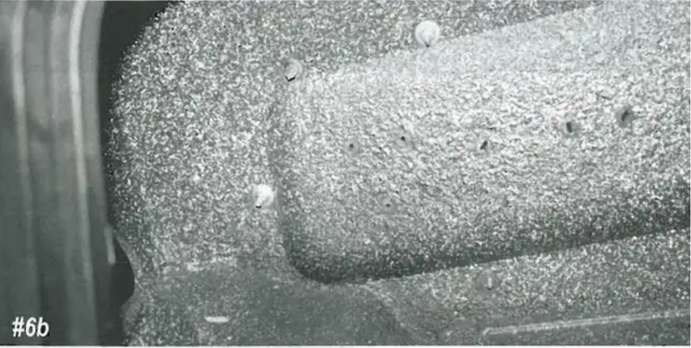

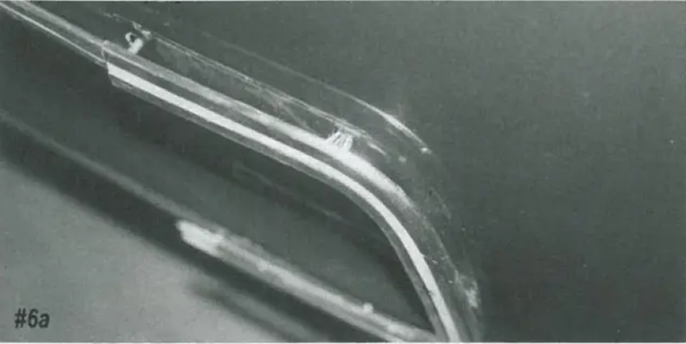

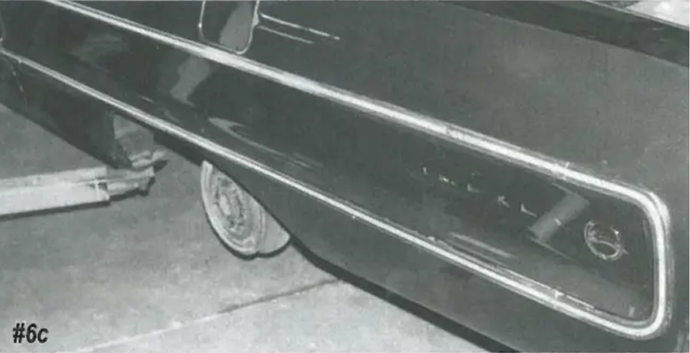

Image 6: The C-molding will couple to the upper and lower moldings, the C molding into, then install the nuts on the studded clips...

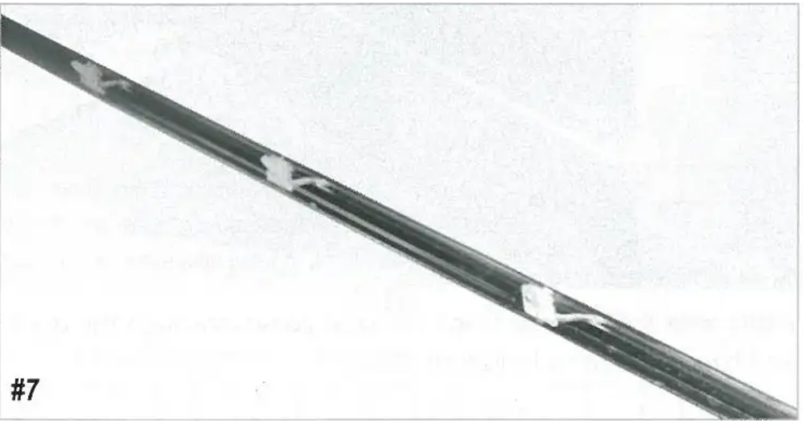

Image 7: The upper and lower door moldings are both held on with one studded steel clip at the front, one clip with a screw at the rear, and four clips like on the quarter...

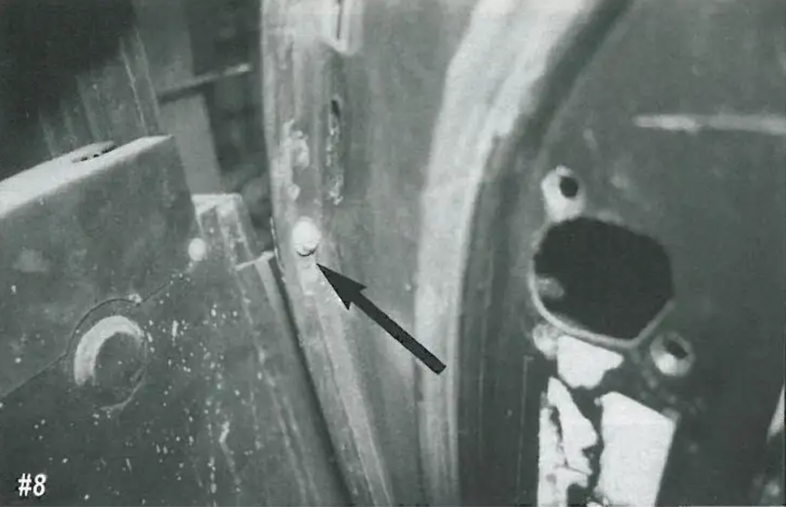

Image 8: At the rear, the Phillips screw through the door and screws into the clip...

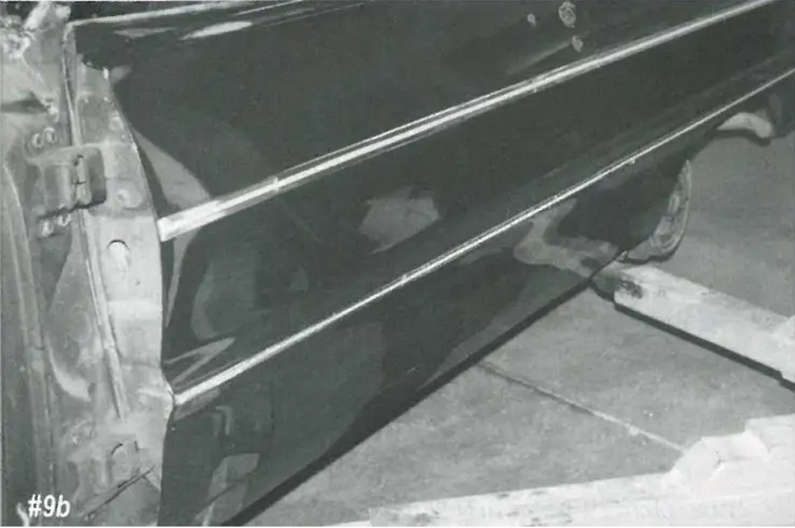

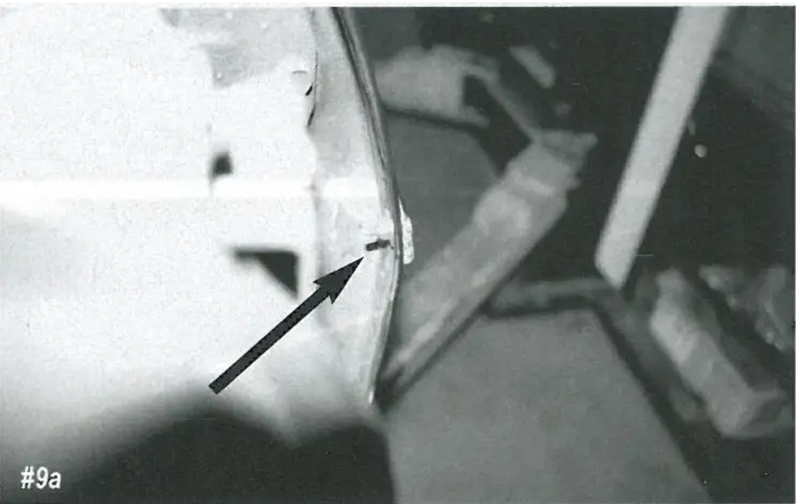

Image 9: At the front, the stud through the door and has a nut to hold it in...

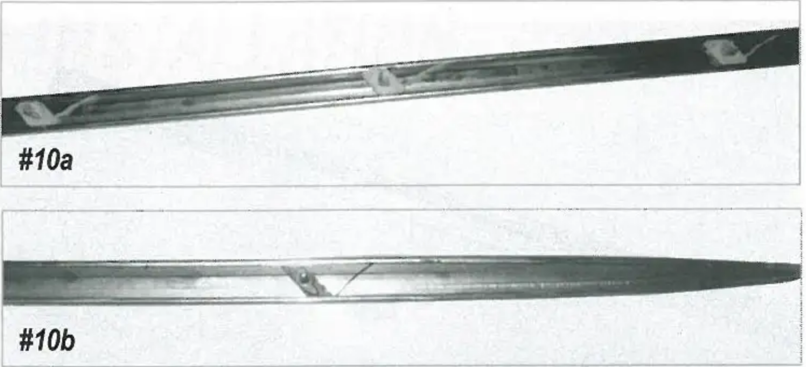

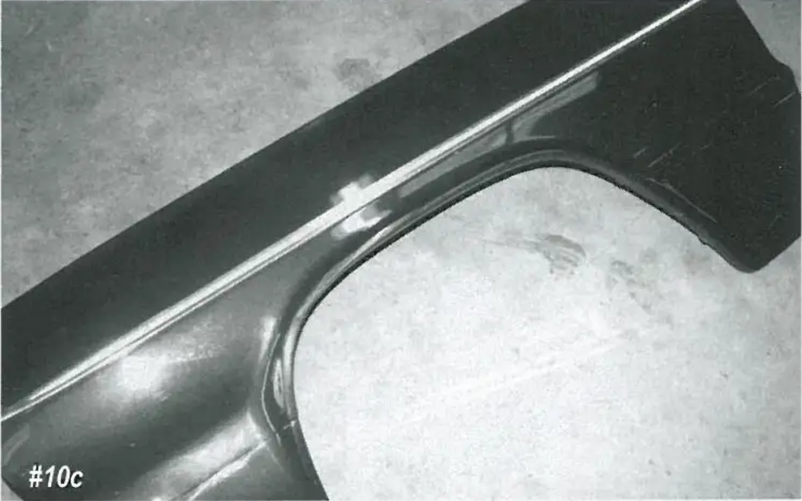

Image 10: The upper front fender molding is held to the fender with three clips and three steel clips with studs and nuts...

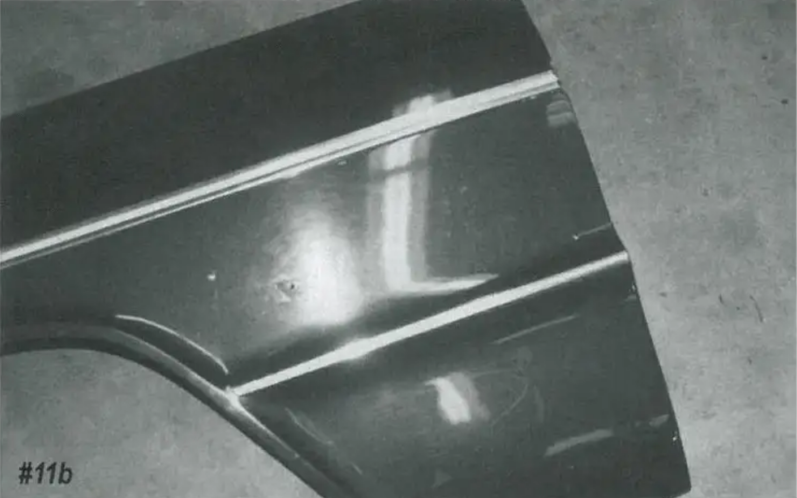

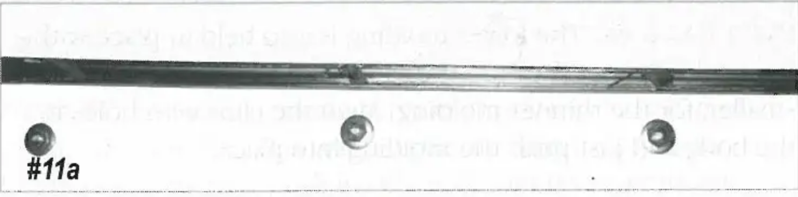

Image 11:The lower fender molding is held to the fender with three steel clips with studs and nuts. Installing new moldings on your 1964, even if the car isn't new, really brightens it up. By using our molding and clip sets, your '64 Impala will look better than new.
