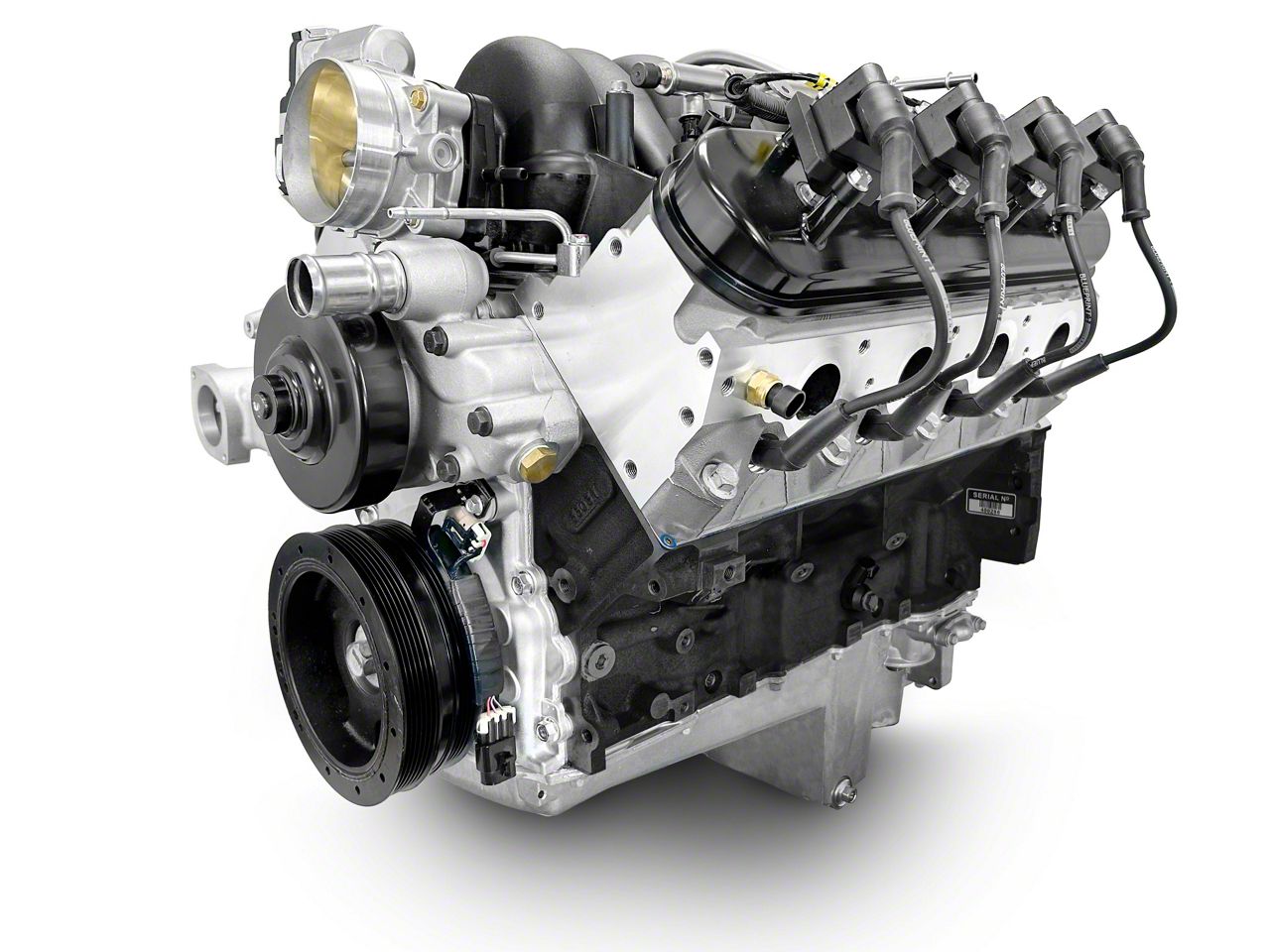

BluePrint Engines ProSeries LS BPE Block 376 C.I. 530 HP Base Dressed Fuel Injected Crate Engine

Horsepower & Torque: 530 Horsepower / 495 FT LBS
Compression Ratio: 10.7:1
Aluminum Heads
Hydraulic Roller Cam
Nodular Iron Crankshaft
Hypereutectic Pistons
Block:

BluePrint Engines High Strength Cast Iron 6.2L Block
Increased Deck Thickness and Strength Webbing
Extended Cylinder Skirt
Priority Main Oiling
4.0662" Bore
6-Bolt Main
1-Piece Rear Main Seal
Improved Water Jacket Design
Utilizes OEM LS3 Front and Rear Covers.
Rotating Assembly:
Nodular Iron Crankshaft
3.622" Stroke
6.125" Connecting Rods w/ 150,000 PSI Bolts
Hypereutectic Pistons
Internally Balanced Front and Rear
Cylinder Heads:
BluePrint Aluminum Cylinder Heads -PS8015
69cc Chamber
2.165" Intake / 1.590" Exhaust Valves
259cc Intake / 102cc Exhaust Runners
Cam Specs:
Cam Type: Hydraulic Roller Cam
.612 Intake / .585 Exhaust Lift
225 Intake / 238 Exhaust Duration
@.050-113 Degree Lobe Separation
Also Includes:
LS Swap Oil Pan
DBW Throttle Body
GM Plastic Intake Manifold
Fuel Injectors and Rail
Coil Packs
Spark Plugs and Wires
Water Pump
Harmonic Balancer
Notes:
Engine is not shipped with Engine controller kit. Must purchase separately for your application. Controller kit can be found by part number BPPLS530
BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the above ECU / tuning.
