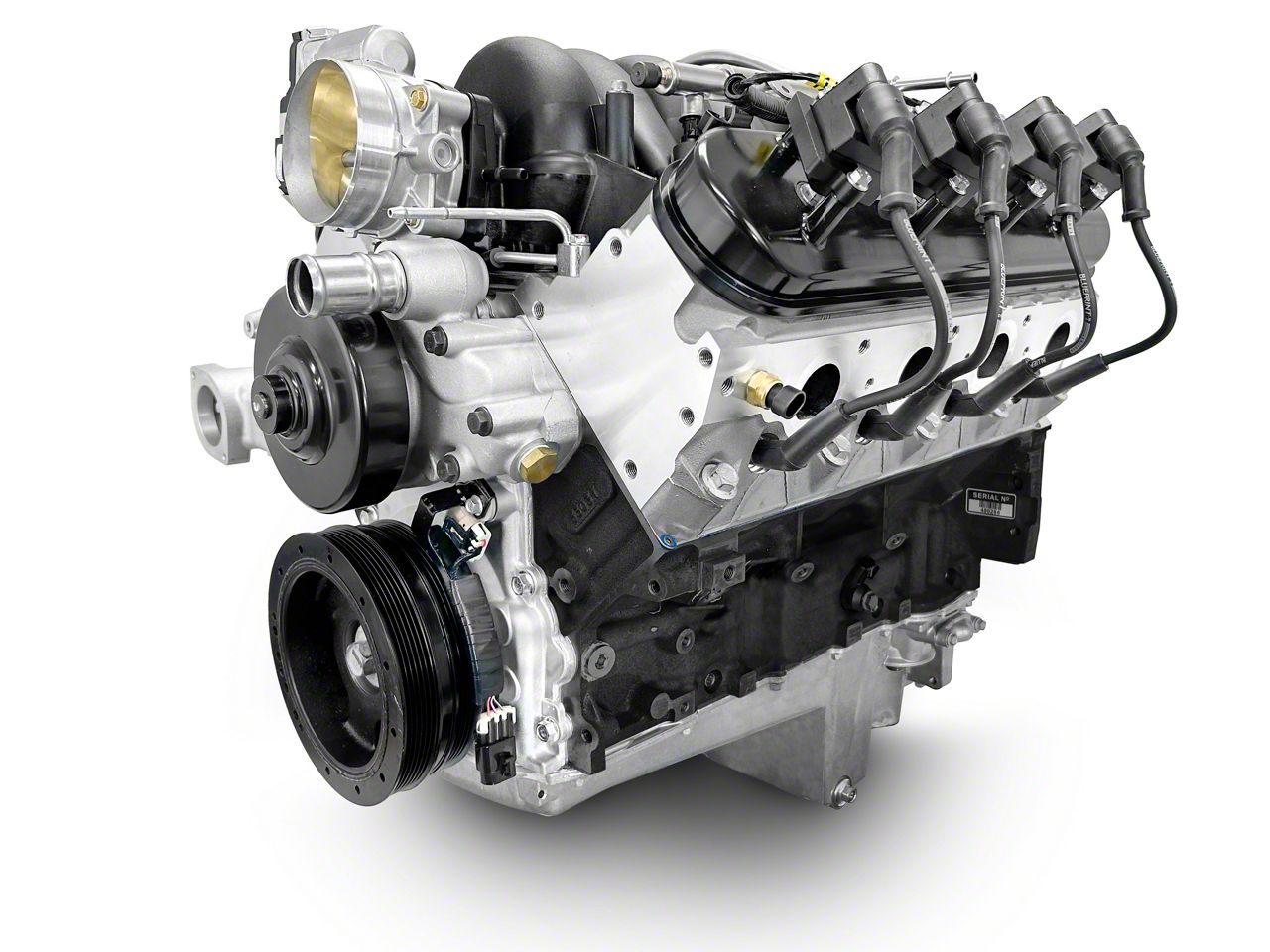

BluePrint Engines ProSeries LS BPE Block 427 C.I. 625 HP Base Dressed Fuel Injected Crate Engine

Horsepower & Torque: 605 Horsepower / 565 FT LBS
Compression Ratio: 11:1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Forged Pistons
Block:

BluePrint Engines High Strength Cast Iron 6.2L Block
Increased Deck Thickness and Strength Webbing
Extended Cylinder Skirt
Priority Main Oiling
4.0685" Bore
6-Bolt Main
1-Piece Rear Main Seal
Improved Water Jacket Design
Utilizes OEM LS3 Front and Rear Covers.
Rotating Assembly:
New Forged Crankshaft
4.125" Stroke
Forged 6.125" Connecting Rods
Forged Pistons
Internally Balanced Front and Rear
Cylinder Heads:
BluePrint Aluminum Cylinder Heads -PS8015
69cc Chamber
2.165" Intake / 1.590" Exhaust Valves
259cc Intake / 102cc Exhaust Runners
Cam Specs:
Hydraulic Roller
.624 Intake / .624 Exhaust Lift
239 Intake / 255 Exhaust Duration
@.050-114 Degree Lobe Separation
Also Includes:
Drive by Wire Throttle Body
42# Injectors and Returnless Fuel Rail
Harmonic Balancer
Valve Covers
LS Swap Oil Pan
Timing Cover
Coil Packs
Spark Plugs and Wires
GM Plastic Intake Manifold
Notes:
Does NOT include any engine management/controller.
This engine requires a non-weighted flex plate/flywheel.
Recommended Fuel: 91 Octane
BluePrint Engines recommends a 2200+ RPM stall converter.
Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars
Not for use in pollution-controlled vehicles or in dry sump applications.
BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained.
