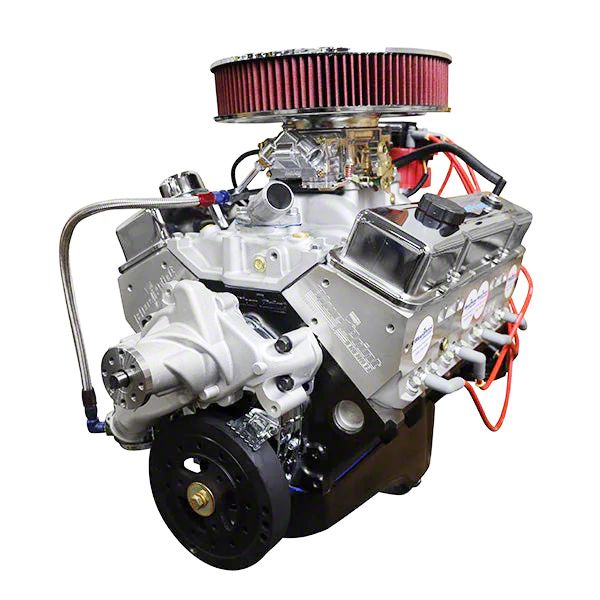

BluePrint Engines Small Block Chevy 383 C.I. 436 HP Deluxe Dressed Carbureted Crate Engine

Horsepower and Torque: 436 Horsepower / 443 FT LBS
Compression Ratio: 10.0:1
Aluminum Heads
Hydraulic Roller Cam
Cast Steel Crank
Hypereutectic Pistons
Block:
NEW BluePrint Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.000" Bore
1-Piece Rear Main Seal
Mech Fuel Pump Provision: Yes
Passenger Side Dipstick
Drilled and Tapped for Clutch Linkage
Rotating Assembly:
New BluePrint Cast Steel Crankshaft
3.750" Stroke
OEM Type 5.700" Connecting Rods w/ 150,000 PSI Bolts
Hypereutectic Pistons
External Front / External Rear Engine Balance
Cylinder Heads:
BluePrint Aluminum Cylinder Heads - H8002K
64cc Chamber
2.02" Intake / 1.60" Exhaust Valves
195cc Intake / 75cc Exhaust Runners
Cam Specs:
Cam Type: Roller
.544 Intake / .555 Exhaust
230 Intake / 236 Exhaust Duration
@ .050-110 Degree Lobe Separation
Ignition Timing:
34 Degrees Total at 3500 RPM
Also Includes:
Holley Classic 750cfm Vacuum Secondary Carburetor w/ Manual Choke
Aluminum Intake Manifold Will not clear a stock Corvette hood. Please call for special build options.
Standard Rotation Long Style Water Pump
Thermostat and Thermostat Housing
Valve Covers
Harmonic Balancer
Spark Plugs
Spark Plug Wires
Fuel Pump
Oil Pan
Timing Cover
HEI Distributor
Notes:
Not for use in pollution-controlled vehicles.
This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke.
The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
