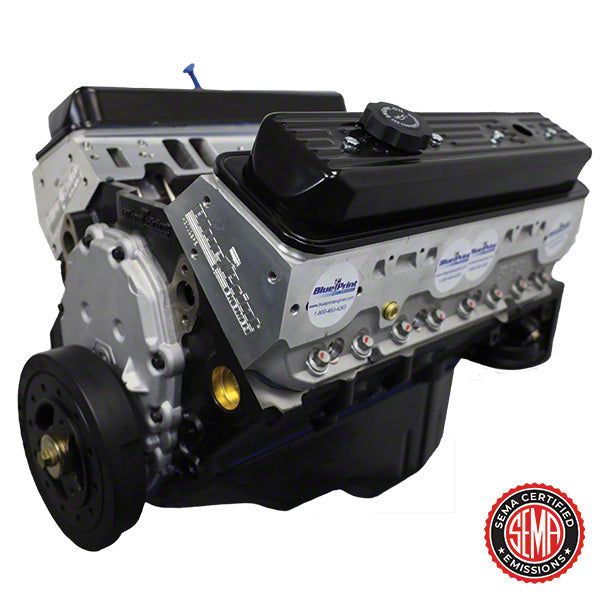

BluePrint Engines Small Block Chevy 383 C.I. 375 HP Vortec Long Block Crate Engine

49 State Legal
Built with Small Block Chevy Engine Kit Part number BPP38350RA, California Executive Order# D-824-1
+47 Rear Wheel Horsepower Increase over Factory
+ 55 Rear Wheel ft/lbs Torque Increase over Factory
Compression Ratio: 10:1
Aluminum Heads
Hydraulic Roller Cam
Cast Steel Crank
Hypereutectic Pistons
Block:
NEW BluePrint Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.000" Bore
1-Piece Rear Main Seal
Mech Fuel Pump Provision: Yes
Passenger Side Dipstick
Drilled and Tapped for Clutch Linkage
Rotating Assembly:
New BluePrint Steel Crankshaft
3.750" Stroke
OEM Type 5.700" Connecting Rods w/ 150,000 PSI Bolts
Hypereutectic Pistons
External Front / External Rear Engine Balanced
Cylinder Heads:
BluePrint Aluminum Cylinder Heads - H8002K
64cc Chamber
2.02" Intake / 1.60" Exhaust Valves
195cc Intake / 75cc Exhaust Runners
Cam Specs:
Cam Type: Roller
.477 Intake / .471 Exhaust
202 Intake / 212 Exhaust Duration
@ .050-115 Degree Lobe Separation
Ignition Timing:
Computer-Controlled
Also Includes:
Valve Covers
Oil Pan
Timing Cover
Notes:
This 383 stroker is designed for use in 1996 - 2000 Chevrolet Pickup or SUV that was originally equipped with a 350ci (5.7L) engine.
No ECU tuning or recalibration is required.
Advertised horsepower gains were achieved on chassis dyno, w/ factory EFI and ECU, in a Vortec equipped, otherwise factory, GM truck.
We have taken our BluePrint OEM style Block and assembled the Small Block Chevy Kit to give you a 24% increase of 49 state legal horsepower, when installed in a GM pickup or SUV year 2000 or older model year that came with a California certified Gen 1 naturally aspirated 5.7 gasoline engine block.
This engine may require modification to existing front accessory drive mounting brackets if retaining oem front accessory drive.
Note: This engine kit has a California Air Resources Board (C.A.R.B.) Executive Order (E.O.) number: D-824-1.
