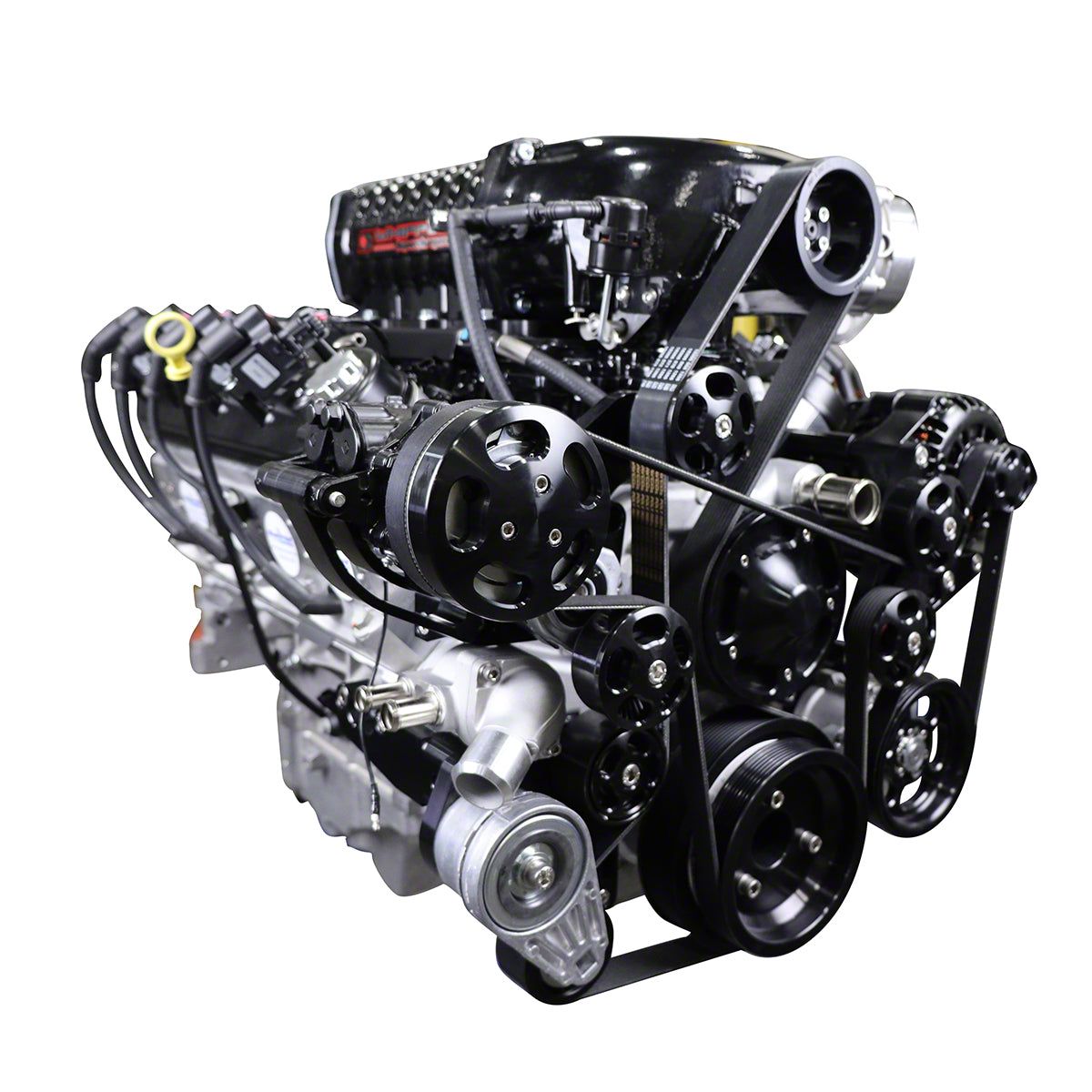

*This engine features a polished pulley kit, note black is pictured
DESCRIPTION:
HP & Torque: 700 HP / 640 FT LBS
Compression Ratio: 9.5:1
Aluminum Heads
Hydraulic Roller Cam
Nodular Iron Crankshaft
Forged Pistons
BLOCK:
New GM Aluminum 6.2L block
OEM Block Machined in the USA!
1-Piece Rear Main Seal
ROTATING ASSEMBLY:
Nodular Iron crankshaft
3.622" Stroke
6.098" forged connecting rods w/ 150,000 psi bolts
Forged Pistons
Internally Balanced
CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads -PS8015
72cc chamber
2.165" intake/1.600" exhaust valves
259cc intake/102cc exhaust runners
CAM SPECS:
Cam Type: Roller Cam
.612 Intake .585 Exhaust
225 Intake / 238 Exhaust duration
@ .050 - 113-degree lobe separation
IGNITION TIMING:
Controlled by Engine Control Module
ALSO INCLUDES:
3.0L Whipple Supercharger
Complete ECU, Harness, Pedal engine controller kit.
Oil Pan
Intake Manifold
Fuel Injectors and Rail
Coil Packs
Spark Plugs and Wires
Water pump
Harmonic Balancer
Installed Complete Polished front accessory Drive. WP, Alt, P/S, A/C, all belts and pulleys.
NOTES:
BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the above ECU / tuning.
BluePrint Engines PSLS3760SCTK
