HP & Torque: 361 HP / 334 FT LBS
Compression Ratio: 9.4:1
Aluminum Heads
Hydraulic Roller Cam
Cast Steel Crank
Hypereutectic Pistons
BLOCK:
NEW BluePrint Engines' high-strength cast iron block
Increased deck thickness and strength webbing
Priority main oiling
4-bolt main
1-piece rear main seal
Improved water jacket design
ROTATING ASSEMBLY:
3.000" Stroke
OEM type 5.090" connecting rods
Hypereutectic pistons
50oz External balance
CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads -HP9008
60cc chamber
2.02" intake/1.60" exhaust valves
190cc intake/60cc exhaust runners
CAM SPECS:
Roller Cam
.533 Intake / .544 Exhaust
215 Intake / 220 Exhaust Duration
@ .050 – 114-Degree Lobe Separation
IGNITION TIMING:
10-16 degrees initial, 32-34 total
ALSO INCLUDES:
Rear Sump Oil Pan
Intake Manifold
EFI System
Distributor
Harmonic Balancer
Valve Covers
Timing Cover
NOTES:
Engine timing cover is designed for standard rotation water pump and pulley kit ONLY.
This engine is an excellent cruiser and daily driver engine. This engine makes up to 16 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel

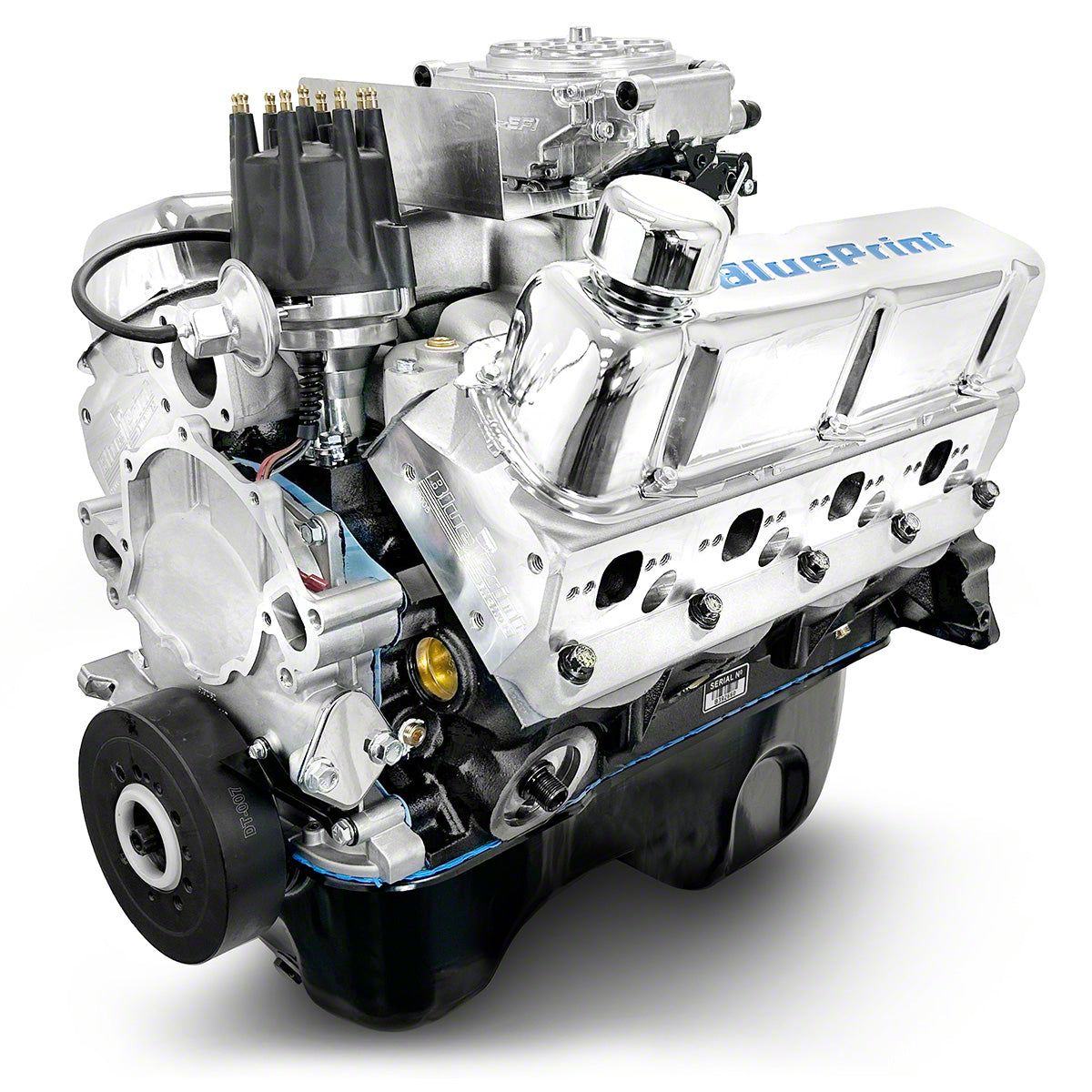

BluePrint Engines BP302RCTF
