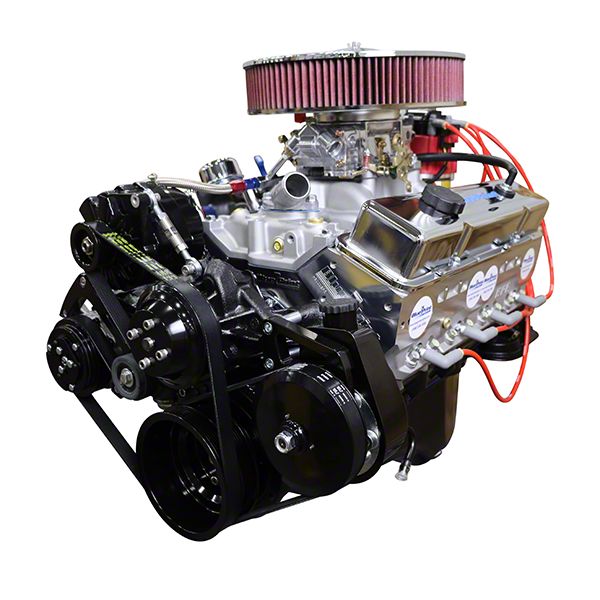

BluePrint Engines Small Block Chevy 383 C.I. 436 HP Deluxe Dressed Carbureted Crate Engine with Black Pulley Kit

HP & Torque: 436 HP / 443 FT LBS
Compression Ratio: 10.0:1
Aluminum Heads
Hydraulic Roller Cam
Cast Steel Crank
Hypereutectic Pistons
BLOCK:
NEW BluePrint Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.000" Bore
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Passenger Side Dipstick
Drilled and tapped for clutch linkage
ROTATING ASSEMBLY:
New BluePrint Cast steel crankshaft
3.750" Stroke
OEM type 5.700" connecting rods w/ 150,000 psi bolts
Hypereutectic pistons
External Front/ External Rear
CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads - H8002K
64cc chamber
2.02" intake/1.60" exhaust valves
195cc intake/75cc exhaust runners
CAM SPECS:
Cam Type: Roller
.544 Intake .555 Exhaust
230 Intake / 236 Exhaust duration
@ .050, 110 ° lobe separation angle
IGNITION TIMING:
34 Degrees Total at 3500 RPM
ALSO INCLUDES:
Valve covers
Harmonic balancer
Spark plugs
Spark plug wires
Long Style Water Pump
Fuel Pump
Oil pan
Timing cover
Aluminum Intake Manifold
HEI distributor
750 cfm Carburetor
Complete Front Accessory Drive with P/S. 7B10 Peanut style A/C compressor,
1-Wire Alternator.
Front Accessory Drive does NOT fit Corvette
Thermostat and thermostat housing
NOTES:
Not for use in pollution-controlled vehicles.
This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75 inch stroke.
The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
