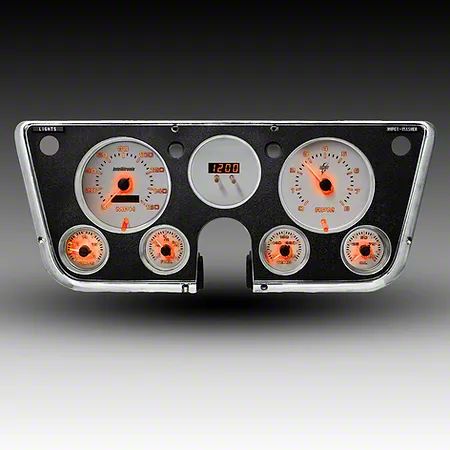

Analog Gauge Panel with White Faceplate; Orange (67-72 Blazer, C10, C20, Jimmy, K10, K20, Suburban)
Item EK-61-900750
$0.00
Our Price
$769.99
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Description, Q&A
Description
1967-72 Chevy Truck Analog Gauge Panel - WL6003
You can now have an 1967-72 Chevy Truck Analog Direct Fit Analog Gauge Panel with our white polycarbonate subsurface with brush stroke finish that makes it an unforgettable show stopping dash. This is truly a work of art. Available in Blue, Green, Orange, Red & White LEDs.
Speedometer, Tachometer, Fuel Level Gauge, Voltmeter, Oil Pressure Gauge, Water Temperature Gauge and Clock. Speed, oil & temp sending units included with kit.
Turn signal indicators, high beam, brake and check engine indicators included. It also comes with factory lifetime warranty, clear plexiglass, hardware, and instructions.
Works with any mechanical or electronic transmissions or you can purchase separately a GPS speedometer (S9020) sender from Intellitronix.
Automatic nighttime dimming.
Voltmeter with high and low voltage reads from 10.0 to 18.0.
Oil Pressure gauge reads from 0-100 psi.
Speedometer reads up to 160 MPH includes one button calibration, regardless of tire size, gear ratio, or transmission, odometer, trip meter, high speed recall, 0-60 time, and ΒΌ mile elapsed time, all with the push of a button!
Tachometer reads from 0 to 8000 in 100 RPM increments.
Water Temperature gauge reads from 100 to 260 degrees Fahrenheit
Fuel Level gauge is user programmable to work with Ford, GM, Chrysler, VDO, and aftermarket 240-33 ohm industry standard fuel senders, reads in 1/4 increments
Easy Install, Lifetime Warranty, Great Price, & Gauges that bring your truck to the next level.
BEZEL NOT INCLUDED
You can now have an 1967-72 Chevy Truck Analog Direct Fit Analog Gauge Panel with our white polycarbonate subsurface with brush stroke finish that makes it an unforgettable show stopping dash. This is truly a work of art. Available in Blue, Green, Orange, Red & White LEDs.
Speedometer, Tachometer, Fuel Level Gauge, Voltmeter, Oil Pressure Gauge, Water Temperature Gauge and Clock. Speed, oil & temp sending units included with kit.
Turn signal indicators, high beam, brake and check engine indicators included. It also comes with factory lifetime warranty, clear plexiglass, hardware, and instructions.
Works with any mechanical or electronic transmissions or you can purchase separately a GPS speedometer (S9020) sender from Intellitronix.
Automatic nighttime dimming.
Voltmeter with high and low voltage reads from 10.0 to 18.0.
Oil Pressure gauge reads from 0-100 psi.
Speedometer reads up to 160 MPH includes one button calibration, regardless of tire size, gear ratio, or transmission, odometer, trip meter, high speed recall, 0-60 time, and ΒΌ mile elapsed time, all with the push of a button!
Tachometer reads from 0 to 8000 in 100 RPM increments.
Water Temperature gauge reads from 100 to 260 degrees Fahrenheit
Fuel Level gauge is user programmable to work with Ford, GM, Chrysler, VDO, and aftermarket 240-33 ohm industry standard fuel senders, reads in 1/4 increments
Easy Install, Lifetime Warranty, Great Price, & Gauges that bring your truck to the next level.
BEZEL NOT INCLUDED
