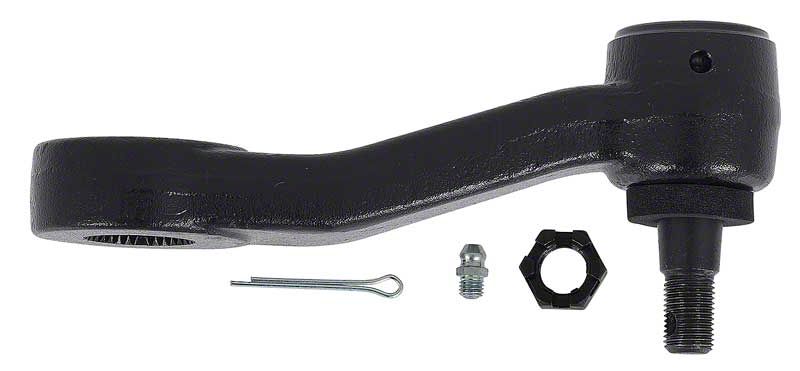

Manual Steering Pitman Arm (1974 GTO)

Quality reproduction of the original pitman arm designed for various GM models. Manufactured to exact factory specifications. Each assembly features heat treated components and forging, and precision machining tolerances. Replacing this component improves steering response; reduces wander and vibration. Assembly includes: (1) Pitman Arm, (1) Dust Seal, (1) Castle Nut, (1) Cotter Pin, (1) Grease Fitting.

Product Specifications

• Stud Dia. Small End Of Taper: 0.589
• Sector Shaft Dia.: 1.125
• Sector Shaft Spline Large Inner Diameter: 1.024
• Length Center to Center: 5.25
• Key Way (Male or Female): Male
• Off Set: Down
• # of Splines: 32
• Hardware Included: Yes
• Arm Type: Bent
• Arm Fixture: Stud
• Arm Fixture Stud Thread/Hole Inside Diameter: 1/2-20
• Greasable: Yes

Buick Applications:

• 1973-74 Buick Apollo (w/o power steering)

Chevrolet Applications:

• 1968-1969 Camaro (except Z-28) (w/o power steering)
• 1968-1974 Chevy II/Nova (w/o power steering)

Oldsmobile Applications:

• 1973-1974 Oldsmobile Omega (w/o power steering)

Pontiac Applications:

• 1968-1968 Pontiac Firebird 6 cylinder (w/o power steering)
• 1974-1974 Pontiac GTO (w/o power steering)
• 1971-1974 Pontiac Ventura (w/o power steering)
