Power Rack and Pinion for Aftermarket Steering Column (63-65 Small Block V8 Fairlane)

This kit uses a rear steer center take off rack & pinion mounted to a solid one piece bracket which bolts up to the frame using the original holes for the steering box and Idler Arm. This kit works with Small Block Motor cars only. It will fit with the 221, 260, 289, 302, and 351W motors. Installs have been done using Hooker Long Tube Headers or Competition Headers. Other headers may work, but may require modification.

Note: This kit will not work with the factory column shifter, but it will work with an aftermarket column shifter.



Tech Info:

Pinion Type/Size: 17mm DD

Amount of Travel: 6"

Turns Lock to Lock: 2.5 - 2.75 Turns

Pressure Port Size: 18mm - 6AN Banjo

Return Port Size: 16mm - 6AN Banjo

Pump Required: Low Flow / Pressure

Inner End Threads: 9/16"-18

Outer ends: Included

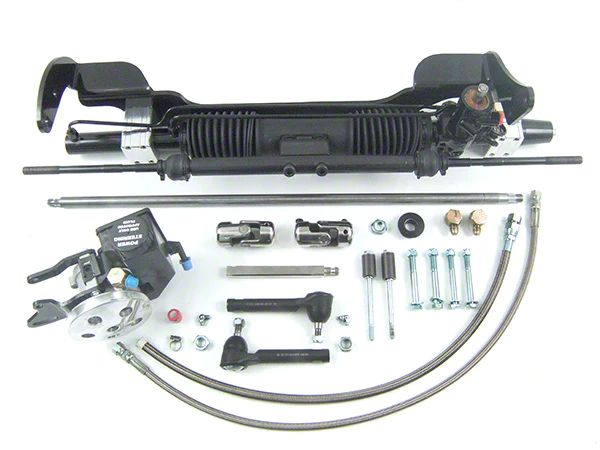

Kit Includes:

Rack and Pinion

Mounting Bracket

Mounting Hardware

Outer Tie Rod Ends

Pump & Line Kit

Steering Shaft Kit
