Power Tonneau Cover Lift Kit Mounting Brackets and 3-Way Switch (80-91 F-100, F-150, F-250, F-350)

AutoLöc's Pro Series Automatic Remote Bolt On Power Tonneau Cover Kit for 1980 - 1991 Ford Pickup Trucks makes opening and closing your heavy tonneau cover a snap! (Double Motor Kit) Simply hit the switch mounted in the cab of your truck and lift the tonneau cover.

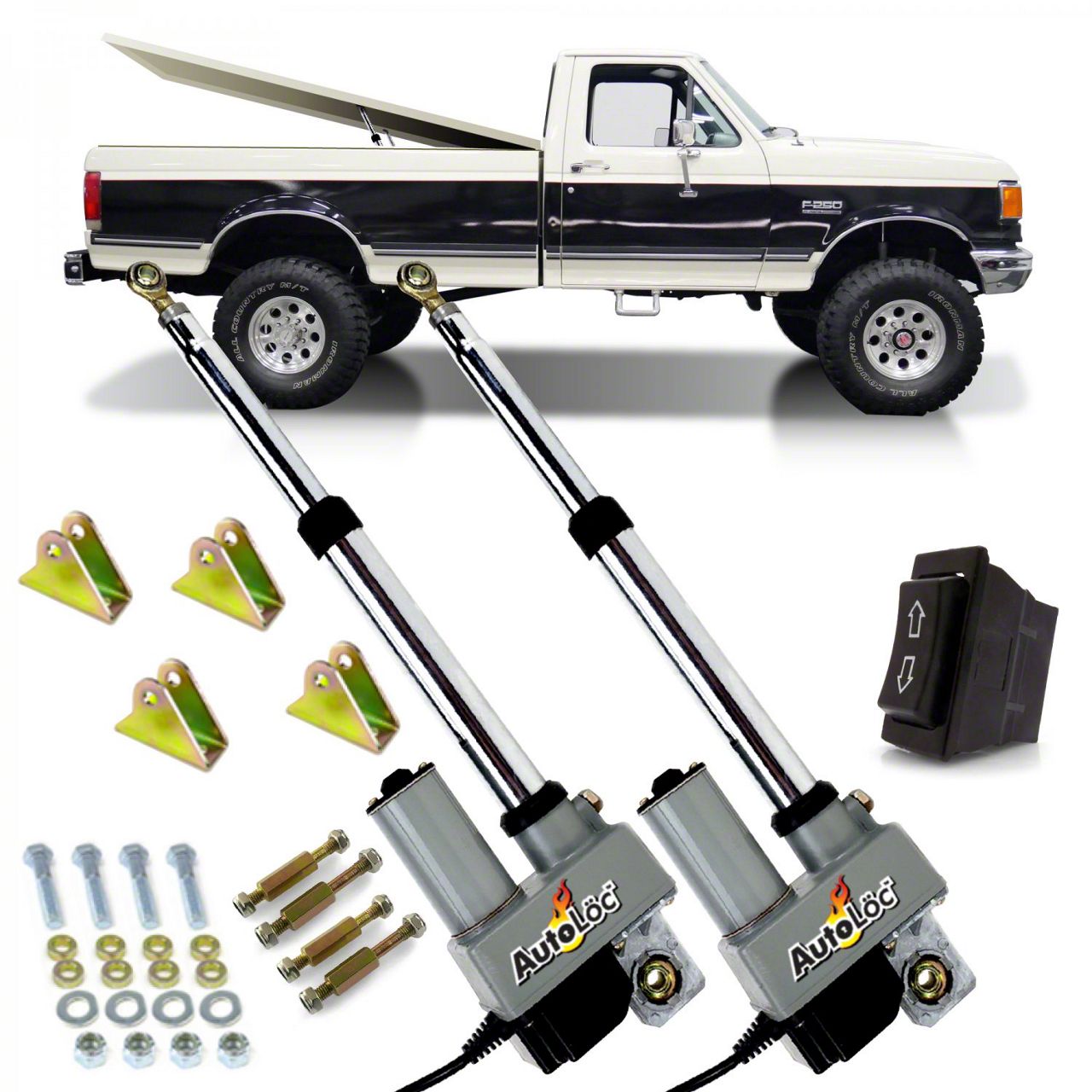

INCLUDES
- 2 Heavy duty 200 lb 8” Stroke Linear Actuators
- 4 Linear Actuator Bolt On Motor Mounting Brackets
- 2 Pair Linear Actuator Motor Mounting Install Post Spacer Set
- 1 3 Position Rocker Switch with Arrows

The linear actuators can replace the gas struts currently mounted on your tonneau cover, or you can mount the actuators in another location and keep the original struts. The actuators operate smoothly and don’t take up a lot of space. the actuators are adjustable in length from 2”-12” stroke length. The option to adjust stroke length allows for easier installation.

LINEAR ACTUATOR FEATURES
- Fully Adjustable
- 200 lb Lift Capacity
- 8 Inch Travel/Stroke
- Heavy Duty High Torque Screw Drive Motor
- Built In Limit Switch
- Permanently Sealed & Lubricated Assembly
- Steel Body
- Metal Bearing Mount

MOTOR CONTROL MODULES (SOLD SEPARATELY)
AutoLöc linear actuators include built in limit switches, which allows you to program custom run times and push/pull settings when combined with an AutoLöc motor control module. Motor control modules SOLD SEPARATELY. See optional motor control module SKU numbers listed below.

PRO TIP The stroke is adjustable. i.e. Setting the start/stop points on a 8" motor can be limited to 4" by setting these points. They are located below a cap on the bottom. (See Fully Adjustable Image).

AutoLöc Motor Control Modules
-----------------------------------------------------------------
2 Presets (SKU:9787)
4 Presets (SKU:9788)
6 Presets (SKU:9789)
8 Presets (SKU:9790)

Free Live USA Technical Support and a Limited Lifetime Warranty.

---------------------- :: LINEAR ACTUATORS
Fully Adjustable :: Yes
Capacity :: 200 lbs
Motor :: Heavy-Duty High-Torque
Limiter Switch :: Built-In
Travel/Stroke :: 8"
Length Collapsed :: 17"
Length Extended :: 25"
Bearing/Mount :: 5/16"
Length Base :: 3.75"
Width :: 2.125"
Gear Ratio :: 10:1 Quick Operation
Assembly :: Permanently Sealed & Lubricated
Material :: Steel
Connecting Ends :: Ball Bearing Rods
---------------------- :: MOUNTING POST SPACERS
Mount Style :: Offset
Design :: Solid One Piece Construction
Compatibility :: Fits Most Actuators
Quantity :: 4
Material :: Steel
Finish :: Zinc
---------- :: Spacer/Post #1
Overall Length :: 2.75
Left Thread Length :: .5"
Right Thread Length :: .875"
Spacer Length :: 1.31"
---------- :: Spacer/Post #2
Overall Length :: 2.87"
Left Thread Length :: .5"
Right Thread Length :: 1.25"
Spacer Length :: 1.06"
Thread Pitch :: M8 - 1.25"
---------------------- :: MOTOR MOUNTING BRACKET
Style :: Variable Angle Mounting
Design :: Solid One-Piece Construction
Compatibility :: Fits Most Actuators
Quantity :: 4
Material :: Steel
Finish :: Zinc
Height :: 1.78"
Length :: 2.38"
Width :: .85"
Bottom Hole Size :: 1/4"
Top Hole Size :: 3/8"
Hardware :: Mounting Nut, Bolt & Spacers
---------------------- :: 3 WAY SWITCH
Height :: 1.14"
Width :: .82"
Depth :: 1.63
Terminals :: 5
Terminal Arrangement :: In A Row
Illumination :: None
Material :: Plastic
Mounting Hole :: Square
Amp :: 20 Amp
Frame :: Round
Volts :: 12 V DC
Power Consumption :: Low
Low Heat :: Yes
---------------------- :: OTHER
Warranty :: Limited Lifetime Warranty
