J&M Height Adjustable Panhard Bar Relocation Kit; Driver Side; Red (82-02 Firebird)Find parts that fit my vehicle

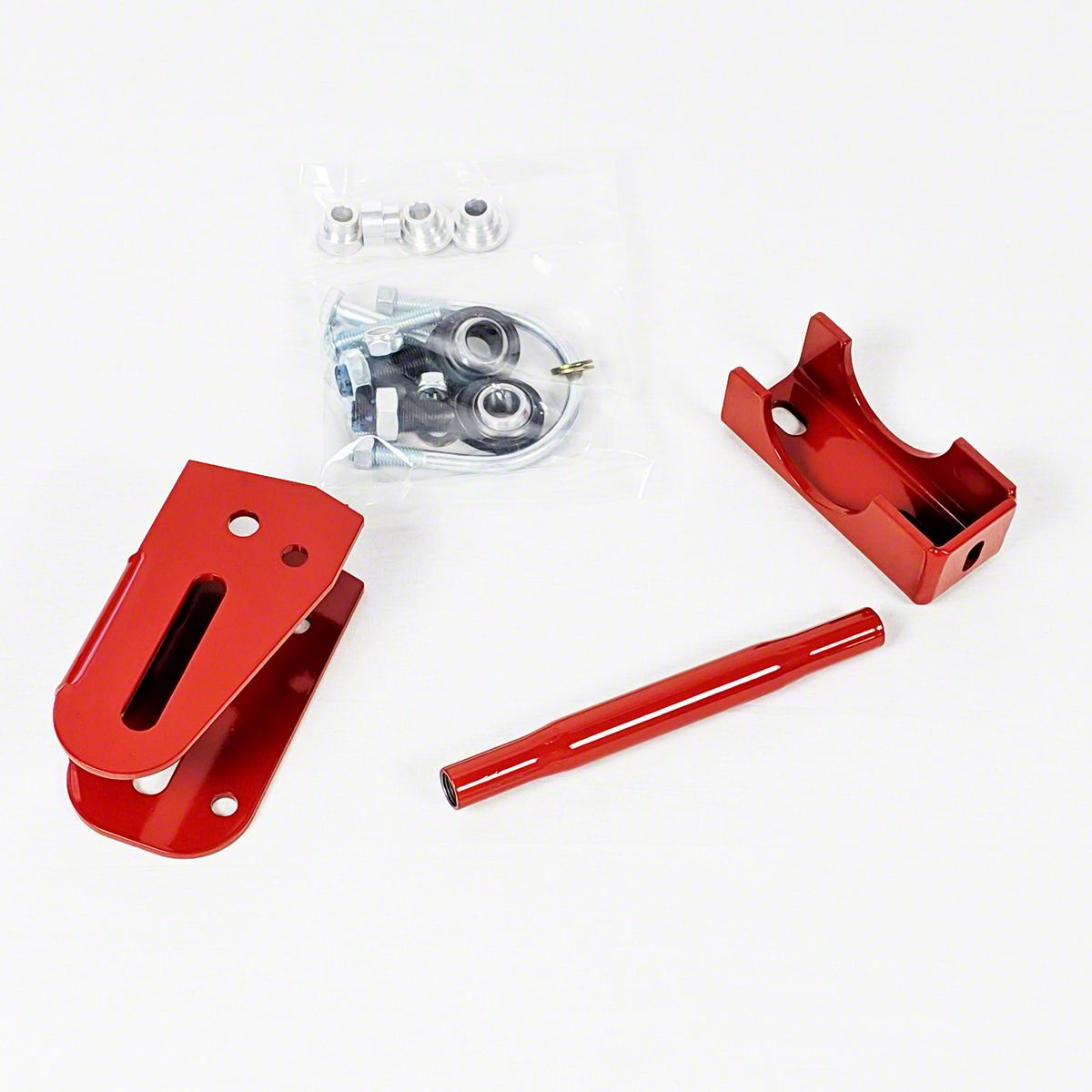

J&M Products Height Adjustable Panhard Rod Relocation Kit – Red
Made In The USA!
Part # 20247 – 1982-2002 Camaro / Firebird Drivers Side Relocation Kit

J&M Products designed this 3rd and 4th Generation F-body adjustable competition leveling and lowering panhard bar kit. The kit’s designed to increase exhaust clearance while lowering and leveling the panhard bar for greater performance. This proven competition setup includes an adjustable brace to prevent deflection and lateral movement of the driver’s side bracket system. Precision CNC laser cut and formed brackets with adjusting slots which allows you to lower your roll center by lowering and leveling the panhard bar giving you greatest in performance tuning. Lowering the roll center with this kit gives you better cornering, better overall stability, and corner exit traction. In almost every case with how long the panhard rod is it will give you better performance compared to the more expensive watts link systems with a lower cost, better adjustability, and easier installation. 100% designed and manufactured by J&M Products with pride in the USA.

Features:

Works with stock and most aftermarket sway bars.
Factory axle tube size only.
Infinitely adjustable roll center height from 1.75” and 4.00” lower.
100% bolt-in for street use. Competition use requires welding.
CNC Laser cut and formed brackets.
Adjustable panhard bar height to allow for perfect leveling and roll center changes.
Powder coated in either red or black.
Allows for fine tuning roll center while at the track.
Watts linkage and factory located panhard rods are typically to high for performance use.
Lowering the (roll center) panhard bar reduces mid-corner oversteer.
Raising the (roll center) panhard bar increases mid-corner oversteer.

Fitment:

• 1982 Pontiac Firebird
• 1983 Pontiac Firebird
• 1984 Pontiac Firebird
• 1985 Pontiac Firebird
• 1986 Pontiac Firebird
• 1987 Pontiac Firebird
• 1988 Pontiac Firebird
• 1989 Pontiac Firebird
• 1990 Pontiac Firebird
• 1991 Pontiac Firebird
• 1992 Pontiac Firebird
• 1993 Pontiac Firebird
• 1994 Pontiac Firebird
• 1995 Pontiac Firebird
• 1996 Pontiac Firebird
• 1997 Pontiac Firebird
• 1998 Pontiac Firebird
• 1999 Pontiac Firebird
• 2000 Pontiac Firebird
• 2001 Pontiac Firebird
• 2002 Pontiac Firebird
