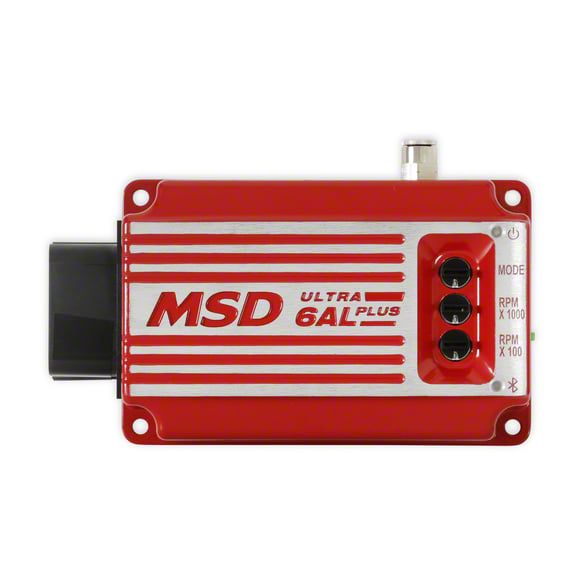

MSD Ultra 6AL Plus Ignition Control; Red (Universal; Some Adaptation May Be Required)

The new ground-breaking Ultra 6AL and Ultra 6AL Plus delivers full MSD power in a compact, feature dense, and lighter package!

The Ultra 6AL greatly expands on the capabilities of the 6-series line with three rev limiters (Launch, Burnout, and Step Retard activation) and is wirelessly controlled from a smart phone via the "MSD Ultra 6AL" app. A Programmable Step Retard (up to 30 degrees) is available for: On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation. High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation. Mobile app available settings include Cylinder selection, Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value, Start retard value.

The Ultra 6AL Plus features boost dependent timing control up to 400 kPA (58 PSI / 4 BAR internal sensor), making it the ultimate ignition box for moderately boosted vehicles utilizing a blow-through or draw-through carburetor. Program through the "MSD Ultra 6AL" app or MSDView software via the integrated USB port. Programmable timing curves in 2D Plots or 3D tables (RPM vs Timing vs MAP Pressure) - you can plot the 3D graph and edit a table 20x20 either from Mobile app (phone) or from MSDView (laptop). Mobile app available settings: Step retard value, Launch RPM value, Burnout RPM value, and Max (Race) RPM Value.

Features:
Boost dependent timing control up to 400 kPA (58 PSI / 4 BAR internal sensor) - the ultimate ignition box for moderately boosted vehicles utilizing a blow-through or draw-through carburetor
Program through the “MSD Ultra 6AL” app or MSDView software via the integrated USB port
MSD CAN communication for easy connectivity to MSDView using a CAN MSD Hub and Power Grid USB or CAN-USB Bridge 89982 product
Programmable timing curves in 2D Plots or 3D tables (RPM vs Timing vs MAP Pressure) - You can plot the 3D graph and edit a table 20x20 either from Mobile app (Phone) or from MSDView (laptop)
Programmable Launch Timing (Seconds vs degrees after launch wire activation)
Capable to program cylinder selection and start retard without a computer or app for old school racers (like 6425 or 6428 box)
Mobile app available settings: Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value
Programmable Step Retard: On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation
Programmable Start Retard through rotary switches: 0, 10, 20 degrees
Launch, Burnout, and Step Retard activation inputs available. This ignition box has a built-in tri step RPM rev limit
Alerts and monitors available
High conversion efficiency ensures minimal heat generation and maximum spark energy output with less current draw from the battery. -
(Highly efficient Ignition, minimum heat and max spark energy with less current draw)
High RPM operation and maximum output using the Blaster HVC, PN 8252 or HVC II, PN 8253
Powerful capacitive discharge of multiple sparks improves performance
Consistently high spark energy of 135mJ to 150mJ for every firing, from idle to redline RPM
Increase spark series duration lasts for 18 of crankshaft rotation
Easily installs on 4, 6, 8-cylinder engines with distributors
Operates on most 7 to 28 volt electrical systems
Fully protected against an open coil, shorted coil & open load
Quickens throttle response & improves starting
Tach Output
Connects to points, magnetic pickups, and Hall/Crank Input distributors on 4,6, and 8-cylinder engines
High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation
Maximum programmable retard of 35 degree
