Find Air Suspension for your Mustang
1964-1973
Ridetech HQ Series Complete Air Suspension System with Hub Spindles (64-66 Mustang)Find parts that fit my vehicle
Item EK-44-900235
$0.00
Our Price
$8,130.00
Out of Stock
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Description, Q&A
Description
Features:
Upper StrongArms feature corrected ball joint angles for the tall spindles. The upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel. Billet cross shafts are included that feature a lowered mounting point to increase camber gain and correct suspension geometry. They house a stout double sheer lower shock mount.
Lower StrongArms feature a unique design that combines the control arm and strut rod into a stronger, more appealing 1 piece design. Additional caster is designed into the arms and includes a robust bearing in an aluminum housing at the front mount to replace the soft factory rubber units.
TruTurn System includes tall spindles which induce more negative camber gain to maximize tire contact patch during cornering. It also includes steering arms, center link adapter, tie rods and adjusters to virtually eliminate bumpsteer, correct Ackerman angle and allow for wider tires. Includes heavy duty frame rail brace. This “Pin” spindle is designed for use with 1967-1969 Camaro brake systems. Compatible with OEM manual steering, AND with the Borgeson power steering conversion box.
Optional “Hub” Spindles offer the same geometry improvements as the pin spindle but add the performance and simplicity of late model Mustang hubs and brakes. Includes S550 2015-2023 Mustang hubs for maximum strength, consistent braking and reduced maintenance. Compatible with 2015-2023 Mustang brake systems, OE and aftermarket (caliper brackets included). Minimum 17″ wheels. Hubs fit Ford car 5 x 4.5″ lug pattern and include 14mm studs.
HQ Series Shockwaves utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty. Interested in Auto Cross or Road Course Racing? Consider the TQ Series Shockwaves which add remote reservoirs with high and low speed compression adjustments.

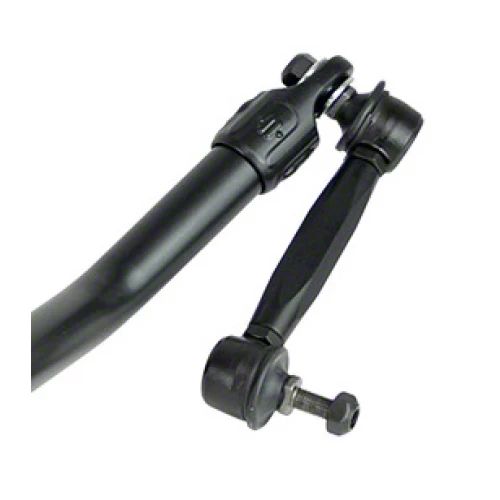

Front MucleBar Sway Bar helps reduce body roll and includes the PosiLink end links that provide immediate engagement between the chassis and control arms. Includes billet aluminum frame straps (anodized black) and low friction bushings.
Bolt On 4-Link greatly improves traction, handling and ride quality. Installation does not require the any major modifications to the floor pan and requires only minimal welding to the axle tube. Works with mini-tubs. All links are double adjustable with R-Joint rod ends, which combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack.
Weld-on lower axle brackets are available if using an aftermarket axle housing without stock style leaf spring pads. Part # 70010122, sold separately.
To complete this Air Suspension system please choose from one of our Control Systems.
Upper StrongArms feature corrected ball joint angles for the tall spindles. The upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel. Billet cross shafts are included that feature a lowered mounting point to increase camber gain and correct suspension geometry. They house a stout double sheer lower shock mount.
Lower StrongArms feature a unique design that combines the control arm and strut rod into a stronger, more appealing 1 piece design. Additional caster is designed into the arms and includes a robust bearing in an aluminum housing at the front mount to replace the soft factory rubber units.
TruTurn System includes tall spindles which induce more negative camber gain to maximize tire contact patch during cornering. It also includes steering arms, center link adapter, tie rods and adjusters to virtually eliminate bumpsteer, correct Ackerman angle and allow for wider tires. Includes heavy duty frame rail brace. This “Pin” spindle is designed for use with 1967-1969 Camaro brake systems. Compatible with OEM manual steering, AND with the Borgeson power steering conversion box.
Optional “Hub” Spindles offer the same geometry improvements as the pin spindle but add the performance and simplicity of late model Mustang hubs and brakes. Includes S550 2015-2023 Mustang hubs for maximum strength, consistent braking and reduced maintenance. Compatible with 2015-2023 Mustang brake systems, OE and aftermarket (caliper brackets included). Minimum 17″ wheels. Hubs fit Ford car 5 x 4.5″ lug pattern and include 14mm studs.
HQ Series Shockwaves utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty. Interested in Auto Cross or Road Course Racing? Consider the TQ Series Shockwaves which add remote reservoirs with high and low speed compression adjustments.
Front MucleBar Sway Bar helps reduce body roll and includes the PosiLink end links that provide immediate engagement between the chassis and control arms. Includes billet aluminum frame straps (anodized black) and low friction bushings.
Bolt On 4-Link greatly improves traction, handling and ride quality. Installation does not require the any major modifications to the floor pan and requires only minimal welding to the axle tube. Works with mini-tubs. All links are double adjustable with R-Joint rod ends, which combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack.
Weld-on lower axle brackets are available if using an aftermarket axle housing without stock style leaf spring pads. Part # 70010122, sold separately.
To complete this Air Suspension system please choose from one of our Control Systems.
Fitment:
- 1964 Ford Mustang
- 1965 Ford Mustang
- 1966 Ford Mustang
Ridetech 12090296
